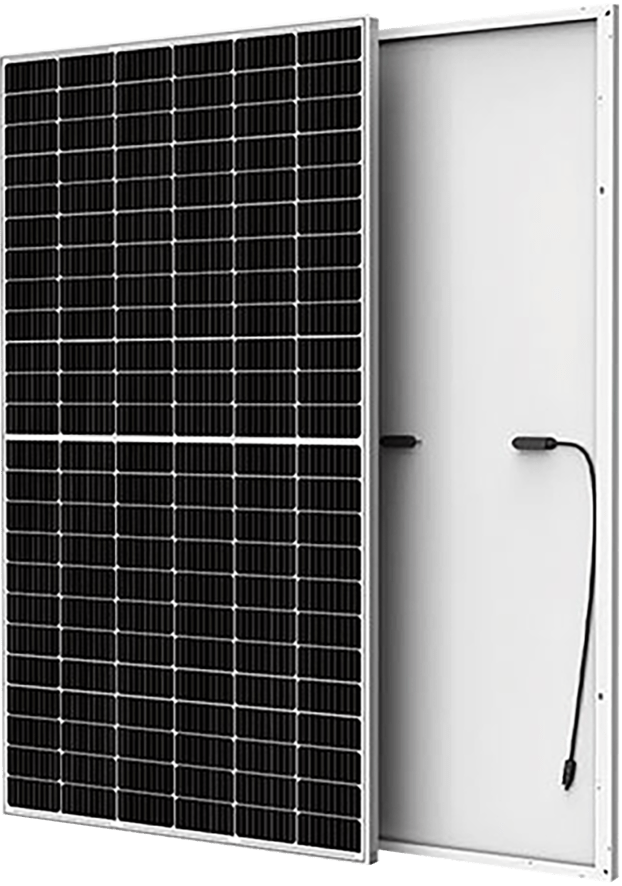

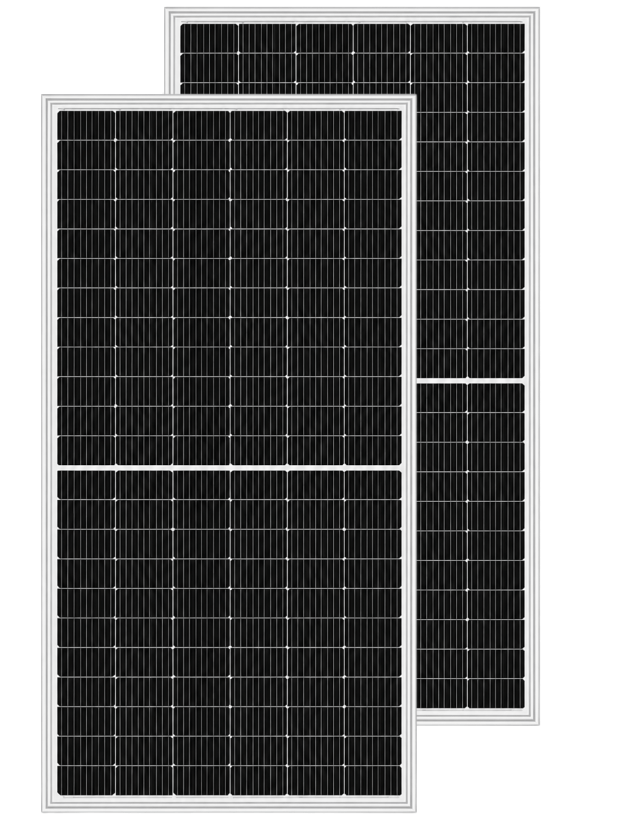

MBB Mono PERC P-Type M10 Halfcut-cell

NS500M, 525 – 550/1500 V Series

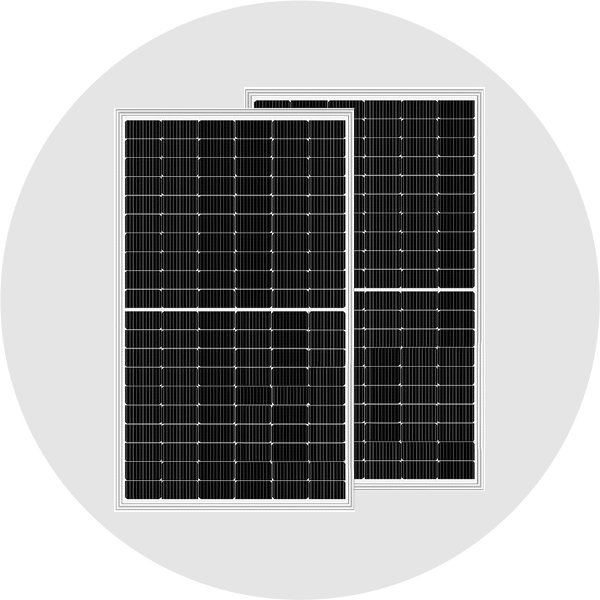

Bi-Facial Transparent Back Sheet

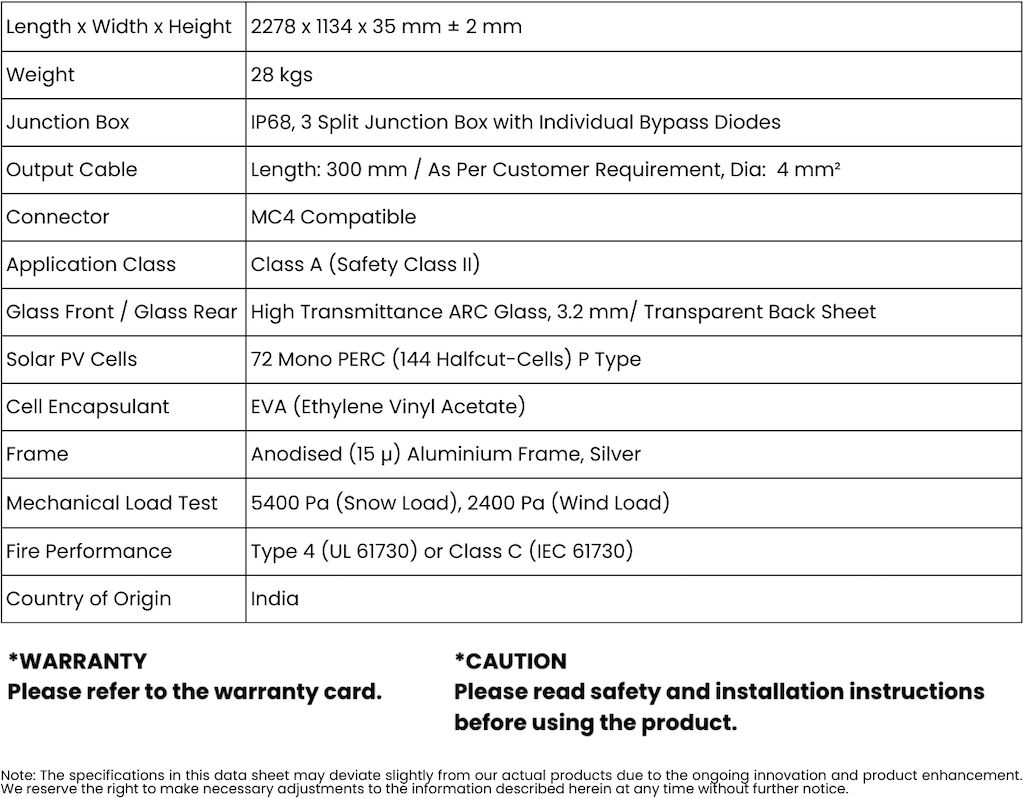

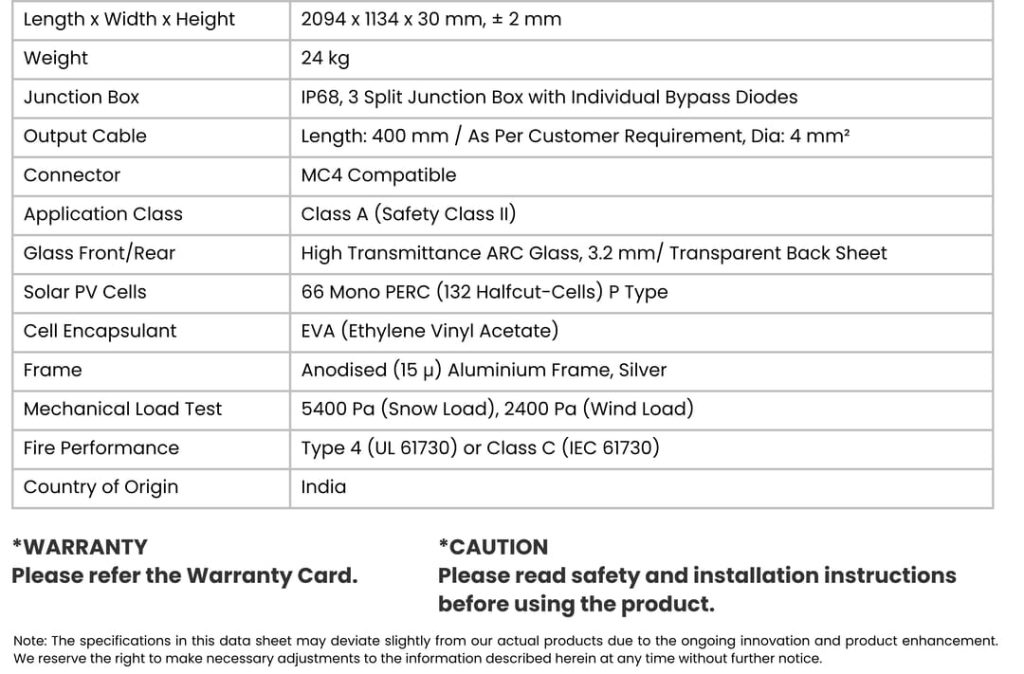

Mechanical Data

Download Product Brochure  Enquire Now

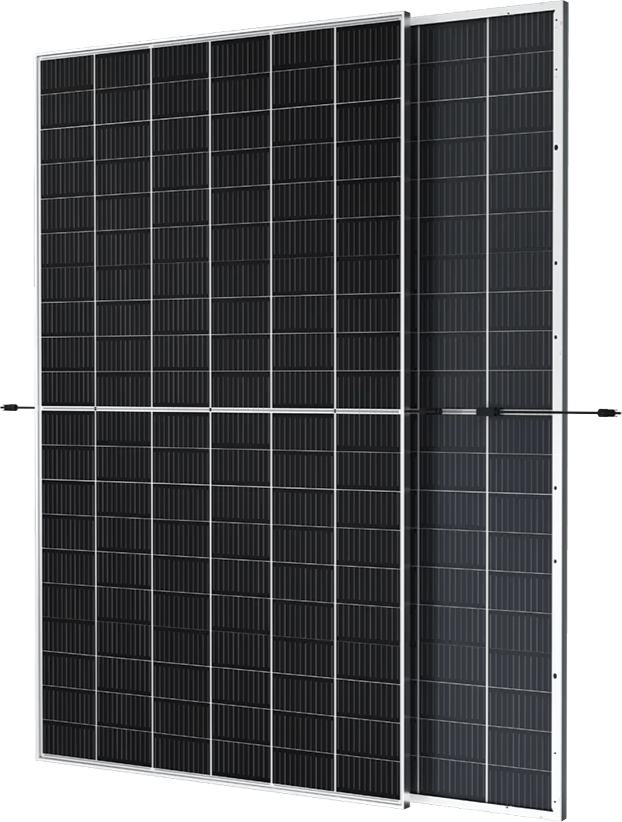

MBB Mono PERC P-Type M10 Halfcut-cell

NS500B, 525 – 550/1500 V Series

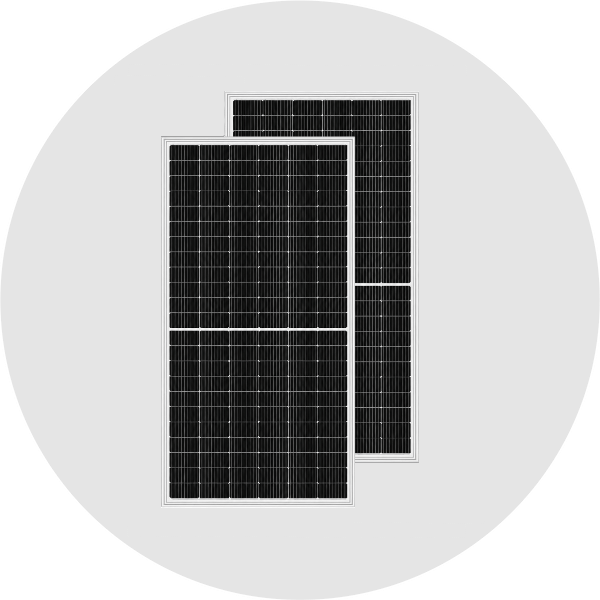

Bifacial Glass-Glass

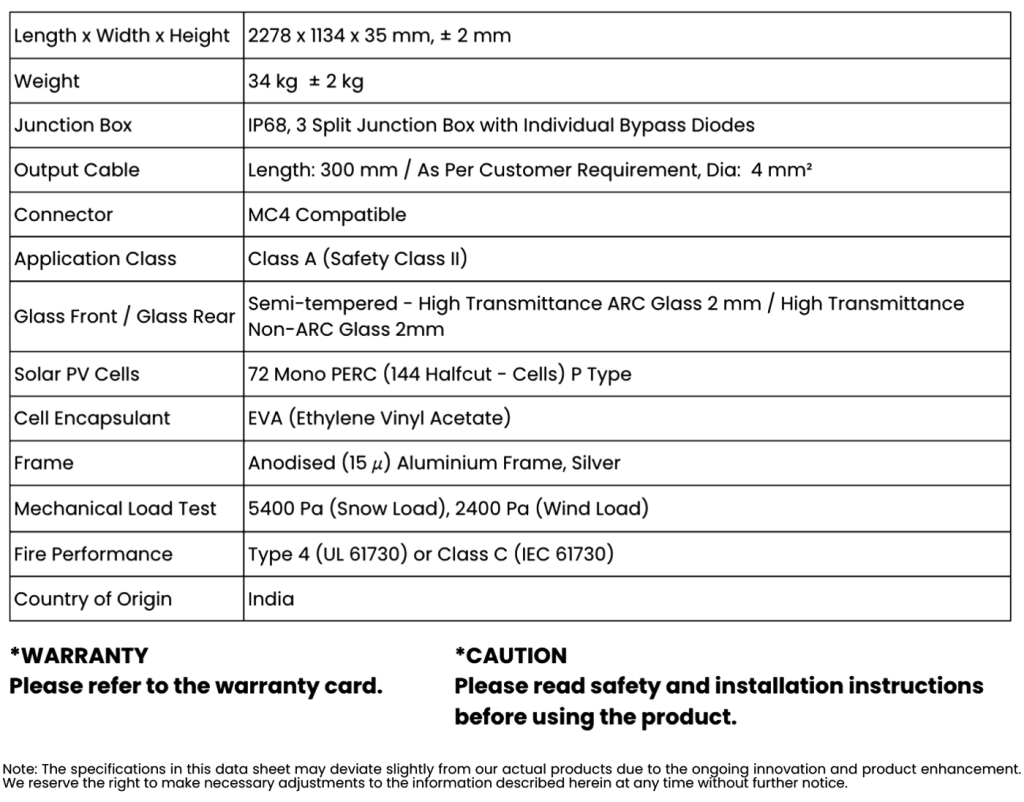

Mechanical Data

Download Product Brochure  Enquire Now

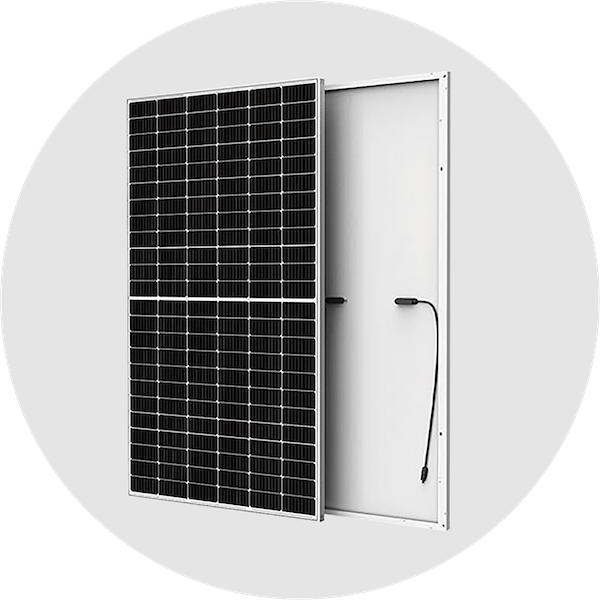

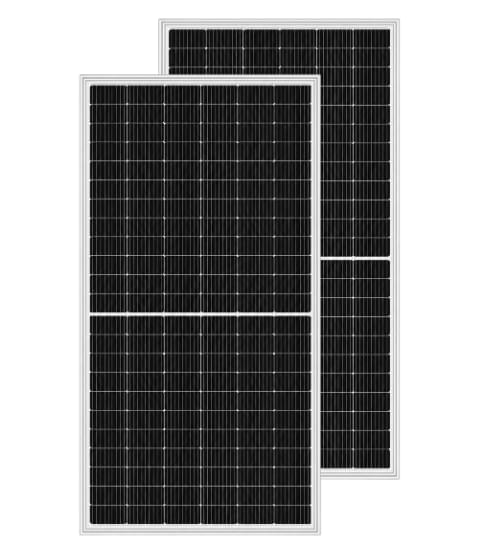

MBB Mono PERC P-Type M10 Halfcut-cell

NS500M, 525 – 550/1500 V Series

Mono Facial

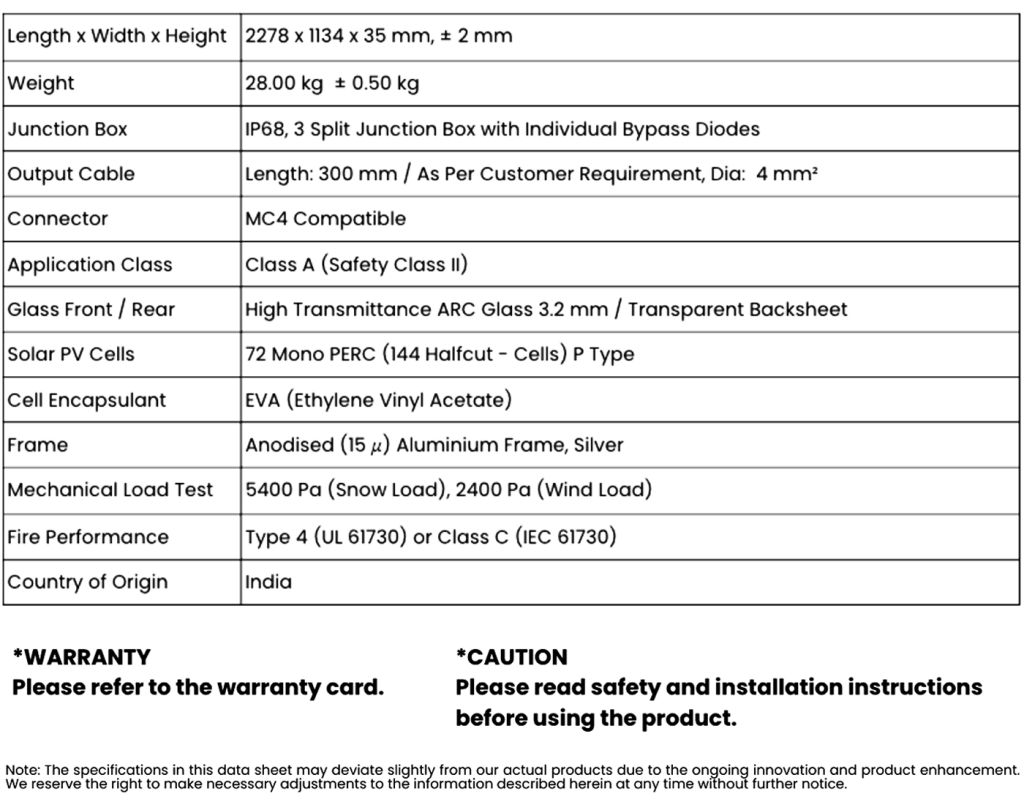

Mechanical Data

Download Product Brochure  Enquire Now

Power

  • Comprehensive LID/Le TID mitigation technology, up to 50% lower degradation
  • Module power from 525 W to 550 W
  • Cost effective product for utility power plant
  • Less shading effect

Reliability

  • Heavy snow load up to 5400 Pa
  • Heavy load up to 2400 Pa
  • Low temperature coefficient

Certicifications*

IEC 61215 2021, 61730 1-2 2016, 61701 (Sev 6 ed. 3), 62716
BIS Certified
IEC 60068
CE Certified
IEC TS 62804
LeTID
IEC 61853-1
UL 61730 2017
IEC 61853-2
